techNet( diskspd) 사용하여 부하 테스트를 진행

gallery.technet.microsoft.com/DiskSpd-A-Robust-Storage-6ef84e62

TechNet DiskSpd: A Robust Storage Performance Tool





Microsoft Technet에서 제공하는 Windows OS 전용 I/O Workload 툴이다.



파일을 다운받아 압축을 해제 후

amd64폴더 안의 파일만 C:\temp로 옮긴다



프롬프트를 실행한다.

아래와같이 명령어를 준다.

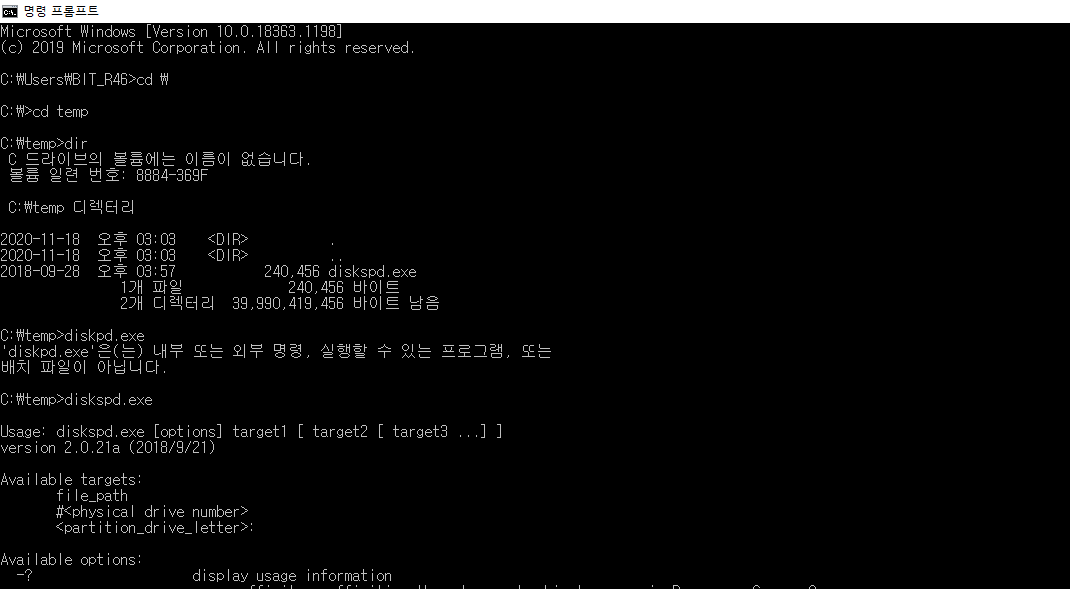

cmd창에서 해당파일 실행 후
명령어 입력
cd 최상위 디렉토리 가기
dir 폴더 내 모든 파일 보기
diskspd.exe (실행)



diskspd.exe -c8192K -d1 testfile.dat

diskspd.exe -b4K -t2 -r -032 -d10 -Sh testfile.dat

diskspd.exe -c1G -b4K -t2 -d10 -a0,1 testfile1.dat testfile2.dat









위와 같이 뜨고,

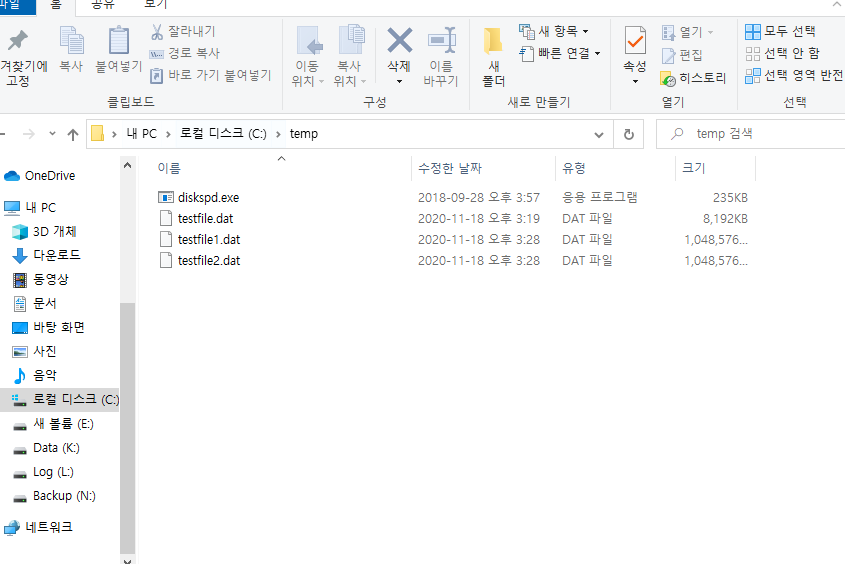

temp폴더안에 파일 3개가 추가됨







매번 명령을 실행시킬때, 작업관리자와 같이보면 좋다?

CPU와 메모리의 변동을 보자~











아래는 diskspd.exe를 실행 했을 때의 옵션이다.

아래 Examples에 명령어실행문도 나와있다.

Available options:
  -?                    display usage information
  -ag                   group affinity - affinitize threads round-robin to cores in Processor Groups 0 - n.
                          Group 0 is filled before Group 1, and so forth.
                          [default; use -n to disable default affinity]
  -ag#,#[,#,...]>       advanced CPU affinity - affinitize threads round-robin to the CPUs provided. The g# notation
                          specifies Processor Groups for the following CPU core #s. Multiple Processor Groups
                          may be specified, and groups/cores may be repeated. If no group is specified, 0 is assumed.
                          Additional groups/processors may be added, comma separated, or on separate parameters.
                          Examples: -a0,1,2 and -ag0,0,1,2 are equivalent.
                                    -ag0,0,1,2,g1,0,1,2 specifies the first three cores in groups 0 and 1.
                                    -ag0,0,1,2 -ag1,0,1,2 is equivalent.
  -b<size>[K|M|G]       block size in bytes or KiB/MiB/GiB [default=64K]
  -B<offs>[K|M|G|b]     base target offset in bytes or KiB/MiB/GiB/blocks [default=0]
                          (offset from the beginning of the file)
  -c<size>[K|M|G|b]     create files of the given size.
                          Size can be stated in bytes or KiB/MiB/GiB/blocks
  -C<seconds>           cool down time - duration of the test after measurements finished [default=0s].
  -D<milliseconds>      Capture IOPs statistics in intervals of <milliseconds>; these are per-thread
                          per-target: text output provides IOPs standard deviation, XML provides the full
                          IOPs time series in addition. [default=1000, 1 second].
  -d<seconds>           duration (in seconds) to run test [default=10s]
  -f<size>[K|M|G|b]     target size - use only the first <size> bytes or KiB/MiB/GiB/blocks of the file/disk/partition,
                          for example to test only the first sectors of a disk
  -f<rst>               open file with one or more additional access hints
                          r : the FILE_FLAG_RANDOM_ACCESS hint
                          s : the FILE_FLAG_SEQUENTIAL_SCAN hint
                          t : the FILE_ATTRIBUTE_TEMPORARY hint
                          [default: none]
  -F<count>             total number of threads (conflicts with -t)
  -g<bytes per ms>      throughput per-thread per-target throttled to given bytes per millisecond
                          note that this can not be specified when using completion routines
                          [default inactive]
  -h                    deprecated, see -Sh
  -i<count>             number of IOs per burst; see -j [default: inactive]
  -j<milliseconds>      interval in <milliseconds> between issuing IO bursts; see -i [default: inactive]
  -I<priority>          Set IO priority to <priority>. Available values are: 1-very low, 2-low, 3-normal (default)
  -l                    Use large pages for IO buffers
  -L                    measure latency statistics
  -n                    disable default affinity (-a)
  -N<vni>               specify the flush mode for memory mapped I/O
                          v : uses the FlushViewOfFile API
                          n : uses the RtlFlushNonVolatileMemory API
                          i : uses RtlFlushNonVolatileMemory without waiting for the flush to drain
                          [default: none]
  -o<count>             number of outstanding I/O requests per target per thread
                          (1=synchronous I/O, unless more than 1 thread is specified with -F)
                          [default=2]
  -O<count>             number of outstanding I/O requests per thread - for use with -F
                          (1=synchronous I/O)
  -p                    start parallel sequential I/O operations with the same offset
                          (ignored if -r is specified, makes sense only with -o2 or greater)
  -P<count>             enable printing a progress dot after each <count> [default=65536]
                          completed I/O operations, counted separately by each thread
  -r<align>[K|M|G|b]    random I/O aligned to <align> in bytes/KiB/MiB/GiB/blocks (overrides -s)
  -R<text|xml>          output format. Default is text.
  -s[i]<size>[K|M|G|b]  sequential stride size, offset between subsequent I/O operations
                          [default access=non-interlocked sequential, default stride=block size]
                          In non-interlocked mode, threads do not coordinate, so the pattern of offsets
                          as seen by the target will not be truly sequential.  Under -si the threads
                          manipulate a shared offset with InterlockedIncrement, which may reduce throughput,
                          but promotes a more sequential pattern.
                          (ignored if -r specified, -si conflicts with -T and -p)
  -S[bhmruw]            control caching behavior [default: caching is enabled, no writethrough]
                          non-conflicting flags may be combined in any order; ex: -Sbw, -Suw, -Swu
  -S                    equivalent to -Su
  -Sb                   enable caching (default, explicitly stated)
  -Sh                   equivalent -Suw
  -Sm                   enable memory mapped I/O
  -Su                   disable software caching, equivalent to FILE_FLAG_NO_BUFFERING
  -Sr                   disable local caching, with remote sw caching enabled; only valid for remote filesystems
  -Sw                   enable writethrough (no hardware write caching), equivalent to FILE_FLAG_WRITE_THROUGH or
                          non-temporal writes for memory mapped I/O (-Sm)
  -t<count>             number of threads per target (conflicts with -F)
  -T<offs>[K|M|G|b]     starting stride between I/O operations performed on the same target by different threads
                          [default=0] (starting offset = base file offset + (thread number * <offs>)
                          makes sense only with #threads > 1
  -v                    verbose mode
  -w<percentage>        percentage of write requests (-w and -w0 are equivalent and result in a read-only workload).
                        absence of this switch indicates 100% reads
                          IMPORTANT: a write test will destroy existing data without a warning
  -W<seconds>           warm up time - duration of the test before measurements start [default=5s]
  -x                    use completion routines instead of I/O Completion Ports
  -X<filepath>          use an XML file for configuring the workload. Cannot be used with other parameters.
  -z[seed]              set random seed [with no -z, seed=0; with plain -z, seed is based on system run time]

Write buffers:
  -Z                        zero buffers used for write tests
  -Zr                       per IO random buffers used for write tests - this incurrs additional run-time
                              overhead to create random content and shouln't be compared to results run
                              without -Zr
  -Z<size>[K|M|G|b]         use a <size> buffer filled with random data as a source for write operations.
  -Z<size>[K|M|G|b],<file>  use a <size> buffer filled with data from <file> as a source for write operations.

  By default, the write buffers are filled with a repeating pattern (0, 1, 2, ..., 255, 0, 1, ...)

Synchronization:
  -ys<eventname>     signals event <eventname> before starting the actual run (no warmup)
                       (creates a notification event if <eventname> does not exist)
  -yf<eventname>     signals event <eventname> after the actual run finishes (no cooldown)
                       (creates a notification event if <eventname> does not exist)
  -yr<eventname>     waits on event <eventname> before starting the run (including warmup)
                       (creates a notification event if <eventname> does not exist)
  -yp<eventname>     stops the run when event <eventname> is set; CTRL+C is bound to this event
                       (creates a notification event if <eventname> does not exist)
  -ye<eventname>     sets event <eventname> and quits

Event Tracing:
  -e<q|c|s>             Use query perf timer (qpc), cycle count, or system timer respectively.
                          [default = q, query perf timer (qpc)]
  -ep                   use paged memory for the NT Kernel Logger [default=non-paged memory]
  -ePROCESS             process start & end
  -eTHREAD              thread start & end
  -eIMAGE_LOAD          image load
  -eDISK_IO             physical disk IO
  -eMEMORY_PAGE_FAULTS  all page faults
  -eMEMORY_HARD_FAULTS  hard faults only
  -eNETWORK             TCP/IP, UDP/IP send & receive
  -eREGISTRY            registry calls


Examples:

Create 8192KB file and run read test on it for 1 second:

  diskspd.exe -c8192K -d1 testfile.dat

Set block size to 4KB, create 2 threads per file, 32 overlapped (outstanding)
I/O operations per thread, disable all caching mechanisms and run block-aligned random
access read test lasting 10 seconds:

  diskspd.exe -b4K -t2 -r -o32 -d10 -Sh testfile.dat

Create two 1GB files, set block size to 4KB, create 2 threads per file, affinitize threads
to CPUs 0 and 1 (each file will have threads affinitized to both CPUs) and run read test
lasting 10 seconds:

  diskspd.exe -c1G -b4K -t2 -d10 -a0,1 testfile1.dat testfile2.dat


C:\temp>diskspd.exe -c8192K -d1 testfile.dat
WARNING: Error adjusting token privileges for SeManageVolumePrivilege (error code: 1300)
WARNING: Could not set privileges for setting valid file size; will use a slower method of preparing the file

Command Line: diskspd.exe -c8192K -d1 testfile.dat





3. Diskspd 주요 옵션

​

- ‘diskspd.exe /?’ 명령을 이용하여 전체 옵션을 확인할 수 있습니다.

- 주로 사용하는 예시 구문 : diskspd.exe -c20g -d300 -w75 -t8 -o16 -b4k -r -h -L -D D:\IO1.DAT >> %DISKSPD%-r25.csv

└ 추후 자료 정리 등을 위한 csv파일로 출력하는 구문입니다.

-c	diskspd 수행시 생성 및 사용하는 파일 크기
-d	테스트 수행 시간(초)
-w	write 비율 (ex. w75의 경우 read 25% / write 75%
-t	파일당 thread 개수
-o	뛰어난 IOs 또는 thread 당 큐 길이. 더 많은 IOPS 및 처리량을 얻기 위한 옵션
-b	IO 크기
-r	순차 thread 수행이 아닌 랜덤 수행
-h	하드웨어 및 소프트웨어 캐싱 사용 안함
-L	대기시간 정보 캡쳐
-D	ms 간격으로 IOPS 통계 캡쳐

​

​
